High Efficiency Factory for 3lpe Steel Pipe Anti-Corrosion Metal Fbe Coating Machinery
Description
3PE anti-corrosion coating production line, is three PE anti-corrosion structure of anti-corrosion pipeline production line, diameter range φ60 ~ φ1420, wall thickness range of 2.5-18mm, the use of three anti-corrosion. Namely, a layer of epoxy powder (FBE> 100µm), the second layer of adhesive (ad) 170 ~ 250µm, the third layer of polyethylene (PE) 2.5 ~ 3.7mm
| No. | Name | Set |
| 1 | Pipe conveyor | 1 |
| 2 | Shot blast Machine | 1 |
| 3 | Elevator | 1 |
| 4 | Platform loading abrasive | 1 |
| 5 | Cyclone dust collector | 1 |
| 6 | Pulse cartridge dust collector | 1 |
| 7 | Centrifugal exhaust fan | 1 |
| 8 | PLC | 1 |
Product Parameter
Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.
The diameter of steel pipe: 426, 630, 720, 820, 1220
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm
Application
The three-layer HDPE stripe winding process, with epoxy powder coating as bottom layer and binding adhesive as second layer, is the widely used technique in steel pipe anti-corrosion all over the world. The anti-corrosion steel pipe are applied in oil, gas and water supply pipelines.

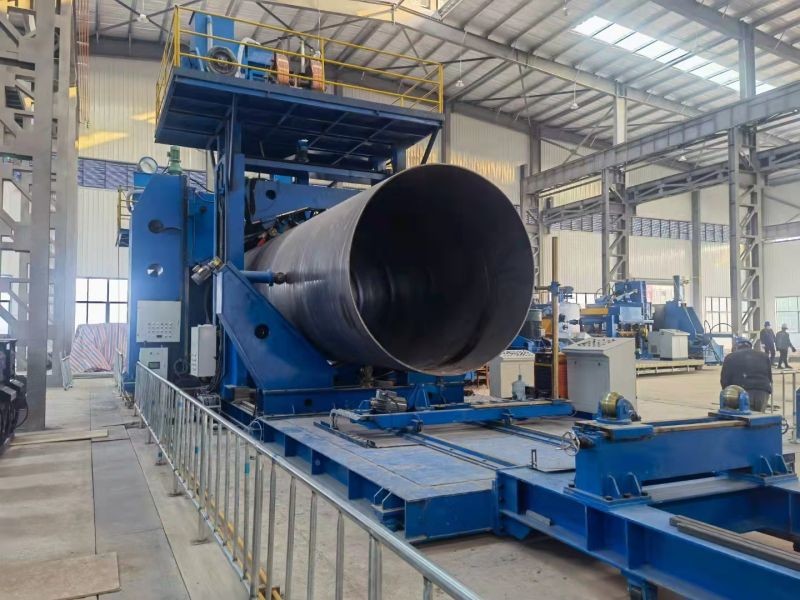

Blasting machinery
steel pipe conveyor
FBE Coating machinery

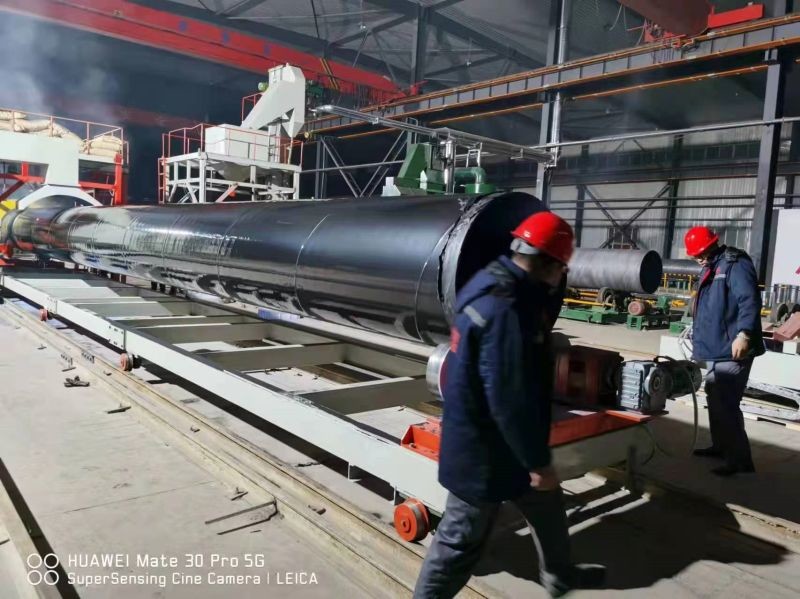

PE/PP layer wrap extruder line
Main Equipment of 3PE anti-corrosion coating processing
Our Services
Quality guarantee period:12 months or 14 months from date of Bill of Lading.
During this period, the seller will provide free service for all problems caused by quality of equipments, however except the problems caused by the buyer .because of wrong operation.
Service:The seller would send technician to the buyer's factory to test the new machine and train people of the buyer. The buyer should pay for round-trip transportation expense, food, accommodation, insurance locally and related salary.
