Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification

Product Categories
Qingdao Huashida Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification

Payment Terms : L/C,T/T,Western Union

Color : Any

Packaging Details : Standard Package

Place of Origin : China - Shandong - Qingdao

Price : 1 - 5 USD$

Width : 100 - 700 mm

Brand Name : Huashida

Certification : CE, ISO9001:2008

Model Number : HSD

Delivery Time : 60 days

Thickness : 2 - 20 mm

Specification : 100 - 5000 mm

Supply Ability : 2000 sets/Day

MOQ : 100 kg

Joint Closure : Pipeline Joint Closure

Contact Now

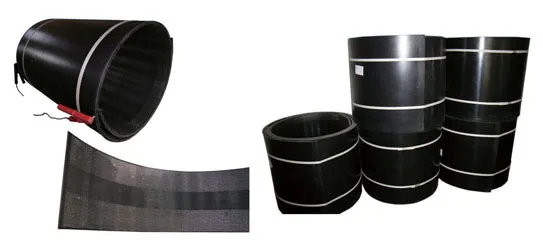

On-Site Electrofusion Sleeves for HDPE Pipeline Connection Joints
Product Overview

On-site electrofusion sleeves are specialized connecting pipe fittings designed for anti-corrosion applications, particularly for directly buried pre-insulated pipes field joints. Manufactured from polyethylene sheets integrated with electro-fusion wire, these sleeves provide superior protection and sealing for pipeline connections.

This heat shrink anti-corrosion material is engineered for joint repair and protection of buried steel pipelines, as well as sealing and anti-corrosion of pipeline flange connections. Composed of radiation cross-linked polyolefin substrate and specialized sealing hot melt adhesive, the system forms a durable, protective barrier when heated and installed.

Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Quality Test Report
TestUnitStandardTest ResultAssess
HDPE Raw material densityg/cm³≥0.9350.961OK
Raw material melt flow rateg/10min≤0.500.46OK
Appearance check/Internal and external surfaces clean and free from defectsOKOK
Heat reversion%≤3; no cracks0.89, No cracksOK
Tensile yield strengthMpa≥1920.2OK
Elongation at break%≥350656OK
Stress crack resistanceh≥300OKOK
Performance Characteristics
  • Waterproof with high adhesion, excellent airtightness, and superior corrosion resistance
  • Long service life with convenient operation
  • Capable of withstanding axial forces from pipe movements in the ground
  • Designed to handle radial forces and bending moments
  • Resistant to temperature variations and effects
  • Matches the thickness of line pipe insulation layer
Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm SpecificationCorrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm SpecificationCorrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Product Features
Customer Reputation

Customers achieve higher quality projects using our premium pipeline accessories, with guaranteed cooperation quality from Huashida.

Application Scope

Primarily used in petrochemical anti-corrosion, thermal pipeline network anti-corrosion, steel pipe anti-corrosion, long-distance oil and gas pipeline interface anti-corrosion, urban gas pipeline interface anti-corrosion, heating steel pipe interface anti-corrosion, and water pipe interface anti-corrosion applications.

Product Classification

Heat shrinkable tapes are available in open and closed types based on construction environment. Supporting products include EVA adhesive strips, fixing sheets, repair sheets, and solvent-free epoxy primer.

Product Specifications
Steel Pipe Outside Diameter (mm)PE Outside Casing Diameter (mm)Width (mm)Thickness (mm)
DN1592856004
DN2193156004
DN2733656004
DN3254206005
DN3775006005
DN4265506006
DN4786306006
DN5296556006
DN6307606008
DN7208506008
DN82096060010
DN920105460010
DN1020115560012
DN1220138060012
Technical Standards

All testing conducted according to EN253-2003, ISO1183-2004, ISO6964-1986, and EN728-1997 standards.

Application Scenarios
  • District thermal heating system construction
  • Pre-insulated pipes field joint welding and oil pipes joint welding
  • Preinsulated bonded pipe systems for directly buried hot water networks
  • Three PE/PP layers with foam jacket insulation pipes connection
  • Steel pipes anti-corrosion applications
Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm SpecificationCorrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Packaging & Shipping
Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Company Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer with 21 years of production experience specializing in plastic pipe machines, municipal pipe machines, pipe insulation & anti-corrosion machines, and pipe jointing & anti-corrosion materials.

Main Products
  • HDPE jacket pipe for pre-insulated pipe Production Line
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments

We serve over 400 overseas customers and export to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria, and other countries worldwide.

Factory Overview
Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Certifications
Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm SpecificationCorrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
Thank you for your interest in Qingdao Huashida Machinery Co., Ltd. equipment.

For further details, please feel free to contact us at any time. Our team will respond promptly and provide a fully customized solution tailored to your specific requirements and project needs.

Corrosion Resistant Electrofusion Sleeve for HDPE Pipeline Joints with 2-20 mm Thickness and 100-5000 mm Specification
